How to config output rate

    1. open the AS message window

    Satrack-as-message-view

    1. tap to “CFG-PWRCTL2 “

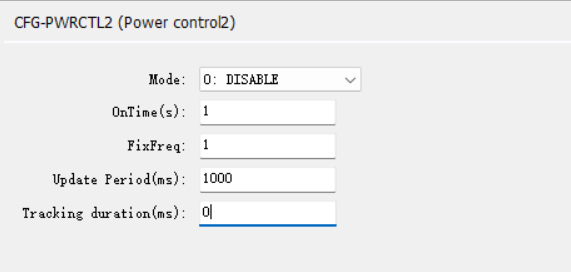

    output-rate-1hz

    5hz-output-rate

    1. tap menu “tools” - “set NMEA message” or “set RTCM message”

    nmea-output-rate

    rtcm-output-rate

    The menu here is primarily for setting the sampling rate. For instance, if the setting in cfg-pwrctl2 is 200ms, that equates to 5Hz.

    If you set it to 1 here, the output rate would be 5Hz. If you set it to 5, the output rate would then become 1Hz.

    However, it is generally not recommended to have a sampling rate that is a multiple other than 1. If you desire a 1Hz rate,

    it is more advisable to set it to 1Hz directly in cfg-pwrctl2.

    Reference

    You can also refer to this FAQ here.

    How-to-enable-specific-message-output
