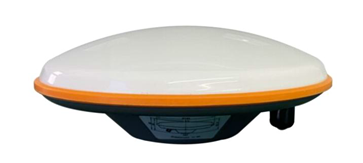

AT400 GNSS Antenna for RTK

    1. Application

    AT400 is a professional antenna specifically designed for high-precision RTK/PPP applications such as surveying and mapping, precision agriculture, robotics, and machine control. It features a stable and reliable carrier phase center, a 150mm ground plane, and can stably receive almost all GNSS frequencies(L1/L2/L5/L6)) and signals.

    It supports L1/L2/L5/L6 bands [new updated].

    2. Specifications

    2.1 Patch Performance

    Parameter Specification
    Frequency GPS/QZSS L1/L2/L5/L6, BDS B1/B2/B3,<br>GLONASS L1/L2, GALILEO E1/E2/E5a/E5b/E6
    Polarization Right-hand circular
    V.S.W.R. ≤1.5
    Axial Ratio (dB) ≤3.0
    Phase center error ＜±2mm
    Output Impedance(Ω) 50

    2.2 LNA Specifications

    Parameter Specification
    Active gain 32.0±2dB
    Noise figure ≤1.8dB typ
    V.S.W.R. ≤2.0
    voltage DC3.3～5.5V
    current ≤48mA(@3.3V)
    Differential transmission delay ≤5ns

    3. Mechenical

    Item Parameters
    Dimensions(mm) D 150mm *H 58.4mm

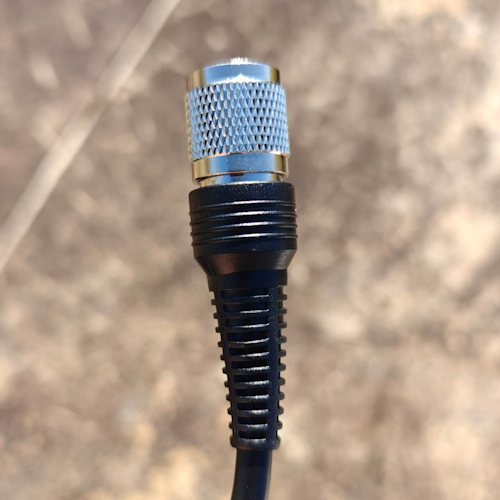

    Connector TNC-K
    Weight (g) 400g
    Waterproof rating IP67

    4. Package list

    • AT400 Antenna

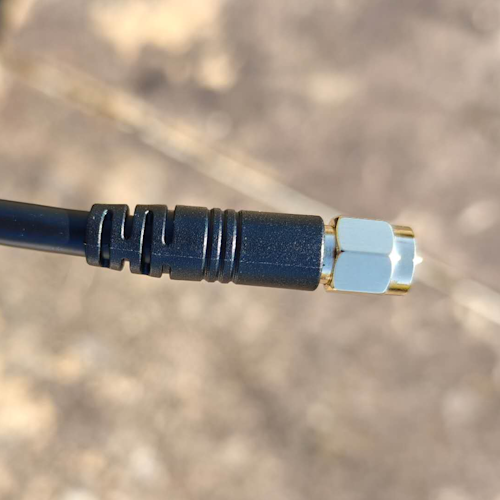

    • 1.5m RF cable (TNC-SMA)

    4.1 Order information

    PN Description
    AT400-00 AT400, L1/L2/L5/L6
    RF-TNC-SMA-03 3m, RF cables, TNC-SMA
    RF-TNC-SMA-05 5m, RF cables, TNC-SMA
