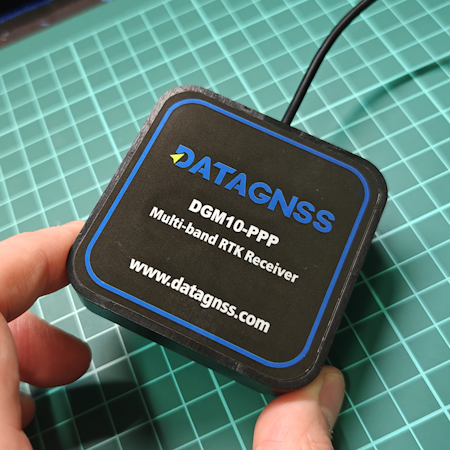

DGM10-PPP RTK Receiver
Overview
The DGM10-PPP RTK Receiver is a high-precision PPP/RTK receiver with build-in antenna based on the D10P module, supporting Japan’s QZSS PPP service.
It supports navigation systems including GPS/QZSS, GALILEO, BDS and GLONASS, and receives signals on L1/L5 bands and L6 band for QZSS PPP corrections service.
With a built-in PPP positioning engine, it enables PPP positioning based on the MADOCA/CLAS service. When conditions permit, PPP-AR positioning is also achievable.
Features
- Supports GPS, BDS, GLONASS, Galileo, QZSS
- Integrated PPP(MADOCA/CLAS)
- State-of-the-art low power consumption design
- The best cost-effective high precision GNSS positioning solution integrated with antenna
- Compact size 65x65x25mm with high performance
- One cable for power and data
Specifications
Antenna
| Item | Specs |
|---|---|
| Frequency Range(MHz) | GPS/QZSS L1/L5, QZSS L6, BDS B1/B2, GLONASS L1, GALILEO E1/E5a |
| Polarization | Right-hand circular |
| Gain(dBi) | 90° L1≥5.5 L2≥5 L5≥2.5 |
| Phase center error(mm) | ≤±2.0 |
| Axial Ratio (dB) | 90°≤3.0 |
| LNA Gain(dB) | 38±2 |
| V.S.W.R | ≤2.0 |
| Noise Figure (dB) | ≤1.8 |
| DC Voltage (V) | 5.0～5.5 |
| Current (mA) | ≤80mA |
| Impedance(Ω) | 50 |
GNSS
| Parameter | Specifications |
|---|---|
| Constellations | BDS, GPS, QZSS, GLONASS, Galileo, NavIC, SBAS |
| Channel | 128 hardware channels |
| Update rates | 1Hz (only support 1Hz in CLAS PPP-RTK) |
| Position accuracy | GNSS 1.0m CEP <br>SBAS ＜1.0m CEP |
| PPP | 0.1~0.6 m (MADOCA, 600-900s converage time)<br><0.06m (CLAS, 60-120s converage time) |
| TTFF | Hot start 1s <br>Cold start 27s |
| Converage time | MADOCA/PPP<900s CLAS/PPP<120s |
| Reliability | ＞99.9% |
| Sensitivity | Cold start -148 dBm <br>Hot start -155 dBm <br>Reacquisition -158 dBm <br>Tracking & navigation -165 dBm |
| Protocol | NMEA-0183 <br>RTCM 3.X |
| Baudrate | 230400 bps, by default |
| Operating condition | Main supply 4.75-5.25V |
| Power consumption | Tracking GNSS 30 mA @ 3.3V <br>Single system 18 mA @ 3.3V <br>Standby Data backup 16 uA <br>RTC 1.4 uA |
| Serial | UART, 6pins, JST-GH-1.25 |
| Cable | 2m default, other length upon request |
| Operating limit | Velocity 515 m/s <br>Altitude 18,000m |
| Environmental conditions | Operating temp. -40°C to +85°C <br>Storage temp. -40°C to +90°C <br>Humidity 95% RH |
| Dimensions(mm) | 65 x 65 x 25 |
| Weight (g) | 120 |
[1] tested with a good external LNA [2] Supported upon request with special firmware
Hardware
1.25mm pitch 6P connector Pinout:
- Black: GND
- Red: 5V
- Green: Tx0 of GNSS module
- White: Rx0 of GNSS module
Installation
- Magnet installation
Package list
- DGM10-PPP receiver
Test report
Please download this test report
Order Info
Order link: DGM10-PPP
| Item Desc. | P/N | Remark |
|---|---|---|
| MADOCA PPP | DGM10-PPP-00 | MADOCA/PPP, L1+L5/L6 |
| CLAS PPP | DGM10-PPP-01 | CLAS/PPP, L1+L5/L6 |
