NANO H10P RTK Receiver

    Overview

    The NANO H10P RTK Receiver is a high-performance dual-band RTK receiver with an integrated compass, based on the CYNOSURE series chipset. It supports global civil navigation systems, including GPS, BDS, GLONASS, Galileo, QZSS, and SBAS.

    This receiver is equipped with a compass and is designed for UAV, RTK, and other applications. It supports both base and rover modes.

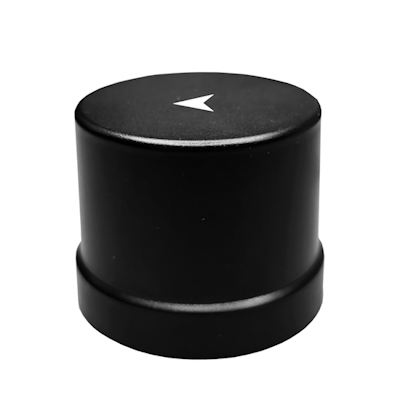

    NANO H10P RTK Receiver

    Features

    • Supports GPS, BDS, GLONASS, Galileo, QZSS, and SBAS
    • Integrated Real-Time Kinematics (RTK)
    • State-of-the-art low power consumption design
    • Supports dual-band L1+L5 or L1+L2
    • Equipped with compass IST8310
    • Lightweight and compact size

    Specifications

    Parameter Specifications
    Constellations BDS, GPS, QZSS, GLONASS, Galileo, NavIC, SBAS
    Update rates 10Hz
    Channels 128 hardware channels
    Position accuracy GNSS: 1.0m CEP
    SBAS: ＜1.0m CEP
    RTK:
    1.0 cm + 1 ppm (H)
    2.0 cm + 1 ppm (V)
    Velocity & Time accuracy GNSS: 0.05 m/s CEP
    1PPS: 20ns RMS
    TTFF Hot start: 1s
    Cold start: 27s
    RTK Convergence time <10s
    Reliability ＞99.9%
    Sensitivity Cold start: -148 dBm
    Hot start: -155 dBm
    Reacquisition: -158 dBm
    Tracking & navigation: -165 dBm
    Protocol NMEA-0183
    RTCM 3.X, raw measurements
    Baudrate 230400 bps, by default
    Compass IST8310
    LNA gain 28 dB
    Operating condition Main supply 1.75V to 3.63V
    Digital I/O supply 1.75V to 3.63V
    Backup supply 1.62V to 3.63V
    Power consumption Tracking GNSS 30 mA @ 3.3V
    Tracking Single system 18 mA @ 3.3V
    Standby Data backup 16 uA
    Standby RTC 1.4 uA
    Serial interface UART x 2
    6P and 4P connector
    Operating limit Velocity 515 m/s
    Altitude 18,000m
    Environmental conditions Operating temp. -40°C to +85°C
    Storage temp. -40°C to +90°C
    Humidity 95% RH
    Weight 15g
    Size ⌀48*35mm

    PINOUT

    8P JST connector, UART0 and UART1, compass I2C interface.

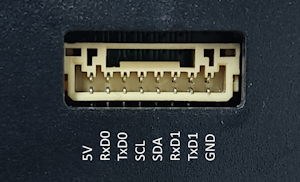

    H10P PINOUT

    From left to right:

    • 5V
    • RxD0
    • TxD0
    • SCL
    • SDA
    • RxD1
    • TxD1
    • GND

    Typically, only RxD0 and TxD0 of UART0 are required for use.

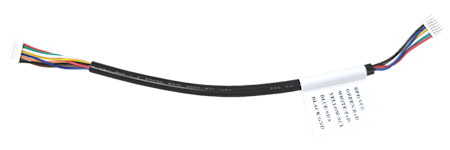

    H10P cables 8P-6P

    Package List

    • H10P RTK Receiver
    • GH-8P-6P-125-04
    • 3M adhesive tape
