Multi-band RTK evaluation kit



  • GPS/QZSS L1/L2/L5,GLONASS L1/L2
  • BDS B1/B2/B3,GALILEO E1/E5A
  • Raw measurement output
  • RTKLIB-compatible
  • Ready for QZSS L6D/E for PPP
  • USB-UART interface
  • Size: 48mm x 23mm
  • Weight:~6.2g
  • Module on board support 12x16mm and 10x10mm

1.Overview

  • output:NMEA-0183, RTCM3
  • raw data:RTCM3 format(MSM7)
  • default baud rate:115200 bps
  • max output rates up to 10Hz[1]

[1]Recommend output rates : 5Hz

2.Operate RTK with rtklib

Quick Guide

Operate on an Android device(D301)coming soon



3.Order

Order No.:

Item specifications Bluetooth P/N
Standard RTK GPS L1/L2,BDS B1/B2,
GLO L1/L2 GAL E1
N ME-00-00
Bluetooth
RTK receiver
same as above
Bluetooth connection
RTK status LED
Y ME-BT-01
with QZS L6D/E GPS/QZS L1/L6,BDS B1/B3I,
GLO L1OF,GAL E1/E6
N ME-00-02



4.Antenna

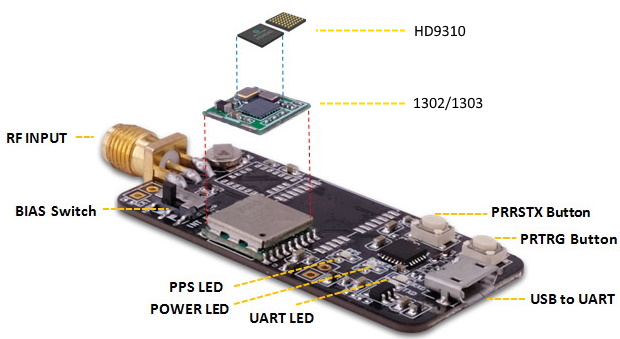

An SMA female jack is available on the side panel of the evaluation unit for connecting an active antenna. The EVK provides the power supply for Antenna power. Use the BIAS switch to select the power source. INT_BIAS with recommended maximum output current 20 mA is powered by the module, and EXT_BIAS with recommended maximum output current 50 mA is powered by the LDO.

To keep the high performance,this EVK requires antenna gain greater than 40db

It is best to use our recommended antenna

AT400 COST-EFFECTIVE MULTI-BAND ANTENNA FOR RTK

5.Power status

The power LED indicates the power status. When the module is powered on, the LED is on.

6.Startup with Satrack


Satrack download

1) Connect the EVK with the antenna and PC.

2) Launch the Satrack application.

3) Select the corresponding COM port.

4) Set the baud rate if necessary by choosing “Device settings” on strip toolbar. If the port is selected and the baud rate is set correctly, Satrack program will show the received EVK output on the screen, signal strength, as well as satellite constellation.

7.Firmware updating


Satrack download

Find out current version:

“View”-“HD Messages”

7.1 user mode

1) Connect to the EVK through COM ports.

2) Select “HD User Update” from the tool bar, and the file choosing dialog will be shown.

3) Find the file to send and press “Open” to start sending the file and finish firmware updating.

7.2 boot mode

Boot mode is only used if the upgrade fails in user mode.

1) Connect to the EVK through COM ports.

2) Use the PRRSTX and PRTRG buttons to set the module to enter Boot mode.

3) Disconnect the module first by clicking “DisConnect” from the tool bar and then reconnect the module again by clicking “Connect” from the tool bar. The module will enter the Boot mode.

4) Select “HD BOOT Update” from the tool bar.

5) Find the file to send and press “Open”.

6) Press “Send” to start sending the file and click “Close” to close the updating window after firmware updating finishes.

7) After firmware updating completed, press RESET button on the EVK to restart the module.

DO NOT interrupt the file transfer, keep program running and make sure all cables are well connected when the file is transmitting.

8.Enable/Disable specific message output

Menu “View”–“Messages”

ID Class ID MSG ID ID Class ID MSG ID
GGA F0 00 RTCM1005 F8 05
GLL F0 01 RTCM1019 F8 13
GSA F0 02 RTCM1020 F8 14
GRS F0 03 RTCM1077 F8 4D
GSV F0 04 RTCM1087 F8 57
RMC F0 05 RTCM1097 F8 61
VTG F0 06 RTCM1117 F8 75
ZDA F0 07 RTCM1127 F8 7F

if you want to disable RTCM1087, and enable RTCM1085, need two steps:

  1. set 1087 period to 0
  2. then set 1085 period to 1.

For,RTCM1085,msg id is 85(dec), to hex is 55.
So RTCM1085,Class ID is F8, and msg id is 55.

above picture is screenshot of Calculator

9.Download the latest firmware[1]

Item GNSS options firmware[2]
Option A GPS L1/L5,GLO L1,BDS B1/B2a,GAL E1/E5A HD9310A.8226
Option B GPS L1/L2,GLO L1/L2,BDS B1/B2I,GAL E1 HD9310B.8226 HD9310B.8284
Option C GPS/QZSS L1/L2/L6,GLO L1/L2,
BDS B1/B3I GAL E1/E6
/

QZSS L6 include L6/D and L6/E, there is two version firmware support different data, please contact info@datagnss.com to get detail information.

[1]If you need other version firmware, please contact info@datagnss.com

[2]This version is released on Oct.16.2019
